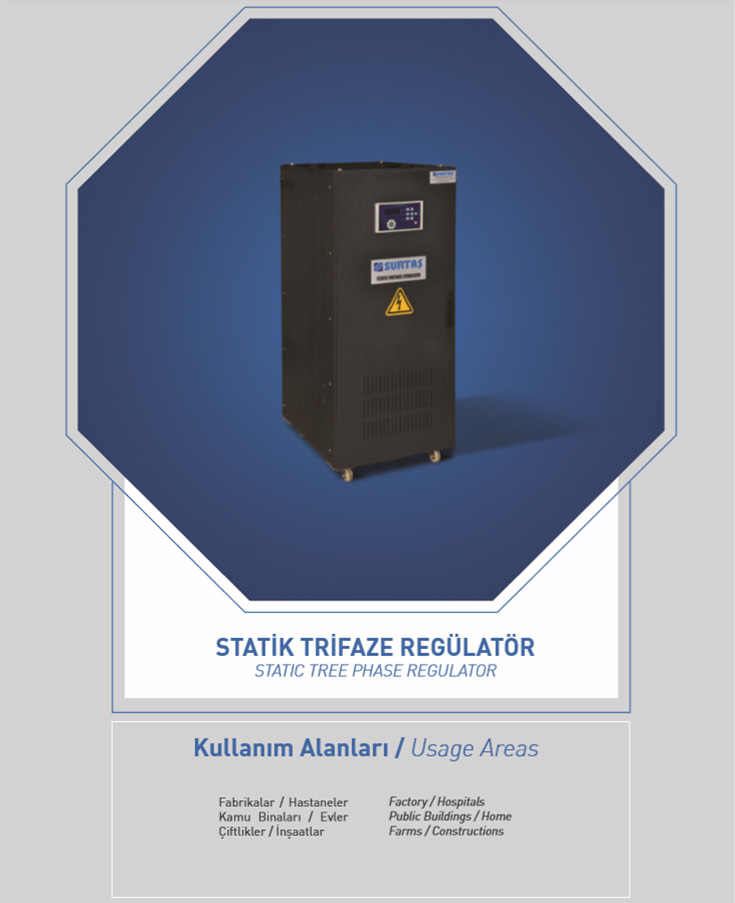

Static Three-phase Regulators
Optional Features
Custom Design and Production for Client’s Need
Remote Monitoring and Management Options
Standards
CE, ISO 9001:2008
General Features
|
Advanced Technology |
|
Independent phase operation |
|
|
High Reliability with Full Digital Microprocessor Control |
|
High Performance Even on 100% Unbalanced Load |
|
|
Wide Power Options in Mono Phase and Three Phase Systems |
|
Easy Monitoring of All Operation Data with LCD Display |
|
|
Wide Input Voltage Range |
|
Silent Operation, High Efficiency and Sensibility |
|
|
True RMS Measurement and Feedback, Control |
|
Modular, Ergonomic Design |
|
|
Best in Class with 5000V/s Regulation Speed |
|
100% Made in TURKEY |
|
|
Regulation in 1 period with 20 ms response time |
|
Environmental Design |
|
|
EMI / RFI Filter |
|
Small Dimensions, Silent Operation |
|
|
Overload, Over Voltage, Low Voltage Protections |
|
Easy Installation/Maintenance and Service |
|
|
Lightning Protection |
|
Low Installation and Operational Costs |
|
|
Short Circuit Protection |
|
10 years spare part warranty |
|
|
Manuel By-Pass |
|
7/24 technical service and customer services |
|
|
Automatic Operation in Abnormal Conditions |
Technical Specifications
| Phase | 3 Phase |
| Power | |
| INPUT | |
| Operating Voltage Range | 210 - 475 VAC |
| Regulation Voltage Range | 285 - 440 VAC |
| Frequency | 50 Hz ± % 5 |
| Input Protection | Over current thermal fuse, surge protection |
| OUTPUT | |
| Voltage | 380 VAC RMS ± %1 ~ %3 |
| Overload Operation | 10 seconds, % 200 load |
| Regulation Speed | 5000 V / Sn |
| Response Time | ~ 20 ms. ( 165 VAC - 255 VAC) |
| Output Protection | Short circuit, Overload, Turning OFF of output over the Output Ser Voltage |
| GENERAL | |
| Technology | RISC Microprocessor Controlled, Full Automatic, Electronics Design with Static Semiconductors, No Moving Parts Inside |
| Efficiency | > % 98 ( at full load ) |
| Mechanic By-Pass | Utility-Regulator Selector PAKO Breaker |
| CONTROL PANEL | |
| Display | 4 x 20 character LCD display |
| Warning Messages | Mains Low/Mains High, output low/output high, Load>100% and over temperature |
| Monitorable Datas | Output Voltage, Input Voltage, Load Percentage |
| Output High Voltage Limit | Selectable between 230 VAC - 250 VAC (via LCD) |
| Output Low Voltage Limit | Selectable between 180 VAC - 210 VAC (via LCD) |
| COMMUNICATION | |
| Remote Monitoring | Monitoring of operation over Network/LAN ( Optional) |
| ENVIRONMENT | |
| Operating Temperature Range | 0 ˚C ~ 40 ˚C |
| Relative Humidity | < % 90, DIN ( 40040 ) |
| Altitude | ≤ 3000 m |
| Noise | < 50 dB ( from 1 meter distance) |
| Protection Level/Color | IP20 / RAL 7035 / RAL 7032 ( Optional) |
| STANDARDS/CERTIFICATES | |
| International Standards/Certificates | ISO 9001:2008 / EN 50091-1 / EN 50091-2 (EMC) |
