Three-phase Servo Voltage Regulators

Three-phase Servo Voltage Regulators

Where network voltage is irregular and unreliable, it is an economical solution for your devices to work smoothly. It is manufactured with high quality materials that provide high efficiency work at full load under heavy working conditions. It has a wide range of uses. Contains moving parts. Therefore, maintenance needs to be done at certain intervals.

- Automatic Servo Voltage Regulator
- High reliability with digital microprocessor control
- Wide Power Options in Three-Phase systems
- Advanced engine control topology
- Independent phase regulation
- Wide Input Voltage Range
- 1%-2% adjustable tolerance for output voltage
- True Rms measurement and feedback
- best in class with 90 V/second - 150 V/second fix speed
- 20 ms recovery time
- Short circuit, high/low voltage and abnormal load protection
- Lightning Protection
- Manuel By-Pass switch
- Adjustable output voltage value via panel
- LCD / LED display
- Programming on digital control panel
- Audible and visual warning system
- High efficiency up to 98%
- Continuous automatic system control
- Intelligent fan control
- Advanced fault/error detection and warning/event memory
- Environmental Design
- Save energy with high effect
- Small Dimensions, Silent Operation
- Easy Installation/Maintenance and Service
- Low Installation and Operational Costs
- 10 years spare part warranty
- 7/24 technical service and customer services

Optional Features
- RS485 advance remote monitoring
- LCD Display
- Contactor Protection
- Galvanic isolation transformer
- Specific input/output design options

Standards - EN 60335
- CE, ISO 9001:2008

Three-phase Full automatic Servo Regulators with microprocessors (3 phase)

	3 Phase Three-phase Regulators	Technical Specifications

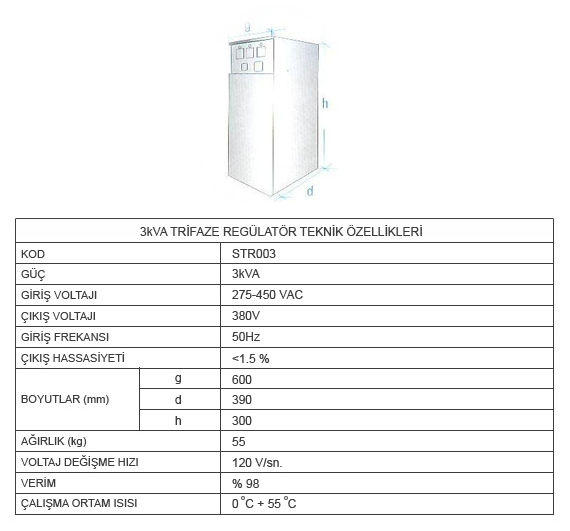

	3kVA Three-phase Regulator Technical Specifications	Technical Specifications

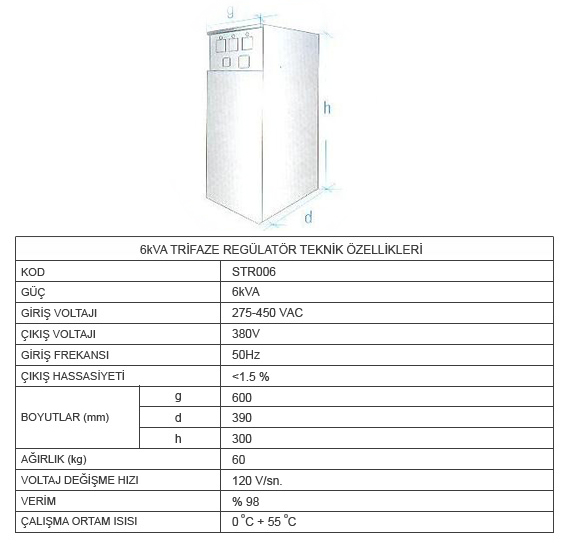

	6kVA Three-phase Regulator Technical Specifications	Technical Specifications

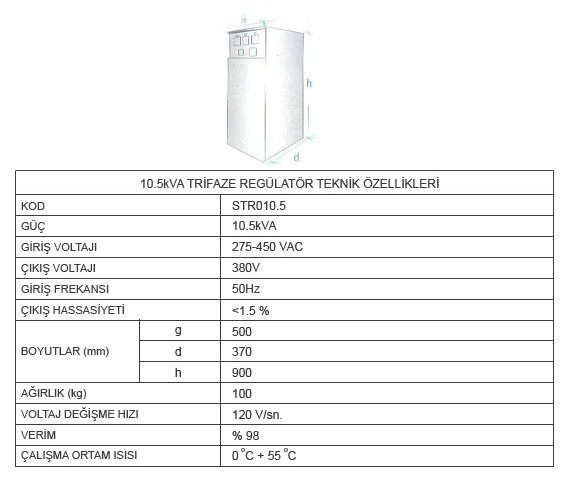

	10.5kVA Three-phase Regulator Technical Specifications	Technical Specifications

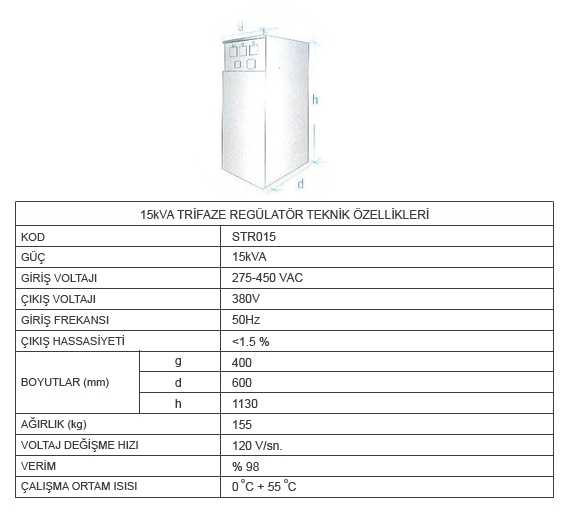

	15kVA Three-phase Regulator Technical Specifications	Technical Specifications

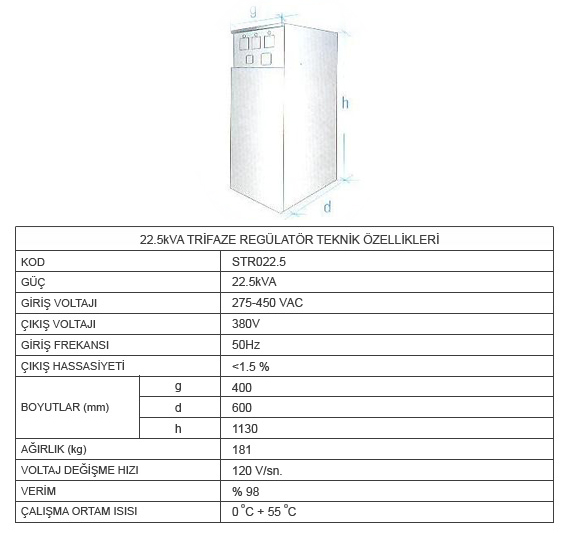

	22.5kVA Three-phase Regulator Technical Specifications	Technical Specifications
	30kVA Three-phase Regulator Technical Specifications	Technical Specifications

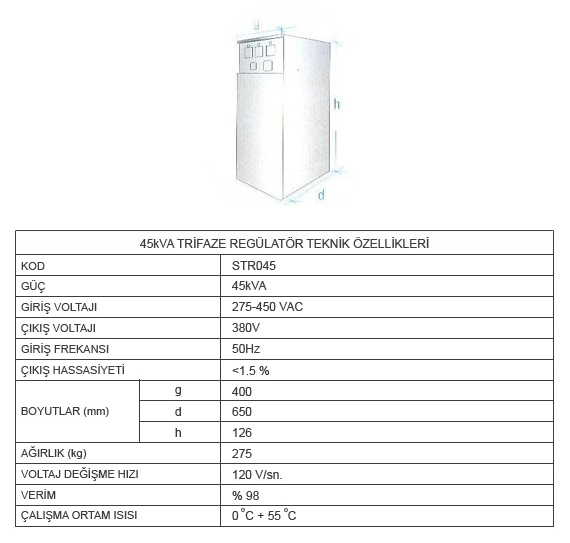

	45kVA Three-phase Regulator Technical Specifications	Technical Specifications

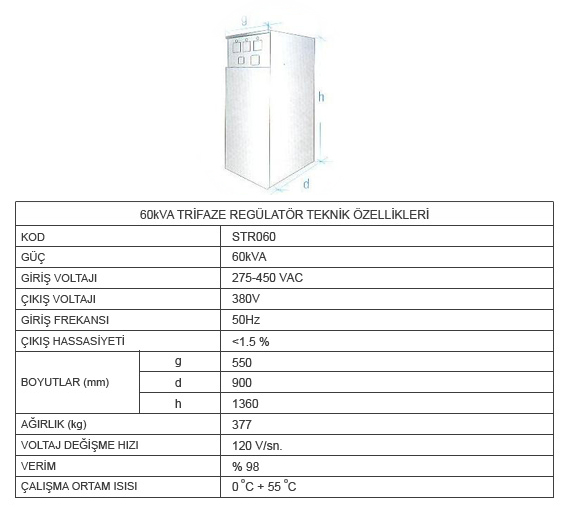

	60kVA Three-phase Regulator Technical Specifications	Technical Specifications

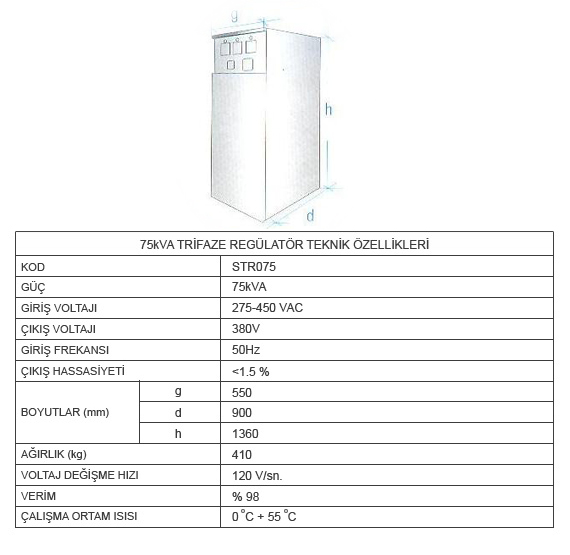

	75kVA Three-phase Regulator Technical Specifications	Technical Specifications

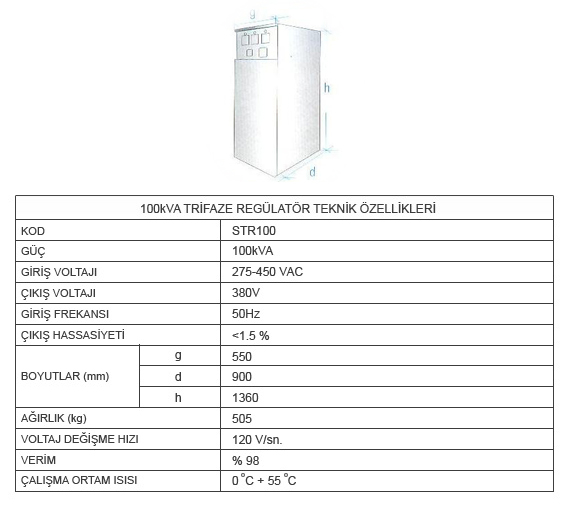

	100kVA Three-phase Regulator Technical Specifications	Technical Specifications

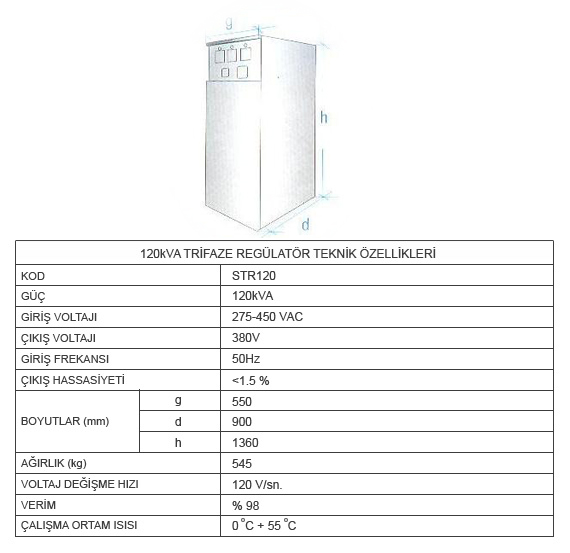

	120kVA Three-phase Regulator Technical Specifications	Technical Specifications
	150kVA Three-phase Regulator Technical Specifications	Technical Specifications

Technical Specifications of Regulators with Micro Processors

	Fields of Use
	Factory, Hospital, Hotel and apartment building main entrances. And other places where stable voltage is required.
	Magnetic Devices.
	Illuminating devices.
	Sensitive photograph studio equipment and devices.
	Induction heating devices.
	Electro planting equipment.
	All kinds of electronic embroidery weaving looms.
	CNC machine tools.
	Heating, cooling air-conditioning equipment.
	Medical devices.
	Radio television transmitter stations.
	Computers
	Electric Motors.
	Wired and wireless communication devices.
	Automatic welding machines.
	Modern industrial equipment.
	Laboratories with electrical and electronic devices and equipment.
	Testing and research laboratories.
