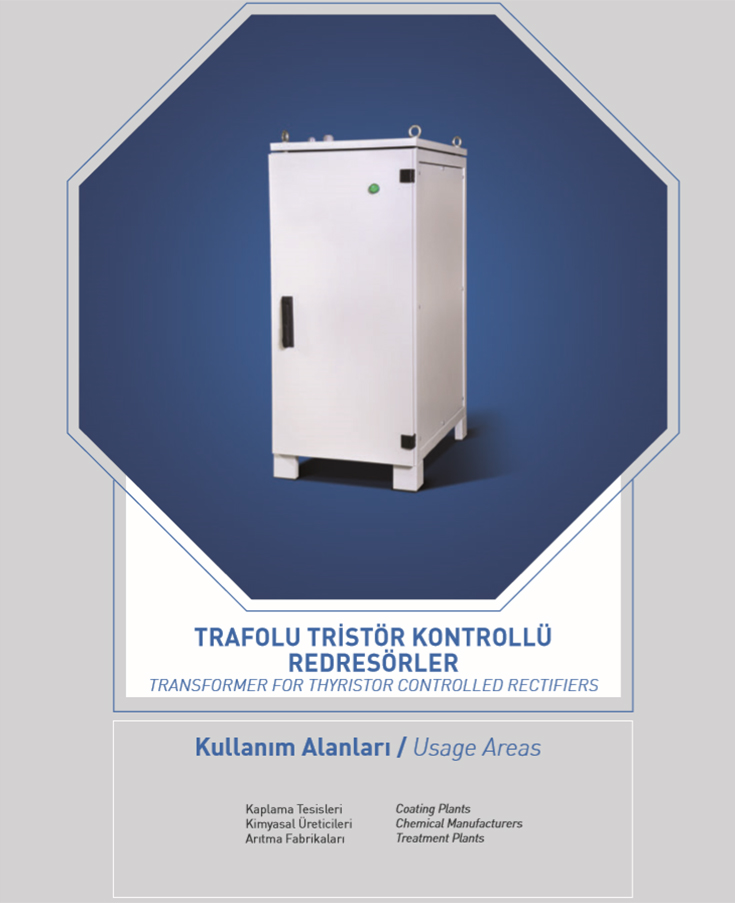

Thristor Controlled Rectifiers with Transformer
TYPE |
Thristor Controlled Rectifiers with Transformer |
Input |
|
Input Phase Number |
1 Phase - 2 Phase - 3 Phase |
Input Phase Voltage Tolerance |
± % 10 |
Input Frequency |
50 - 60 Hz |
OUTPUT |
|
Output current |
100 A - 100.000 A |
Output Voltage |
5 V - 1000 V |
Output Waveform |
6 pulse %4 12 pulse %1 |
GENERAL |
|
Cooling |
Air - water – oil cooling |
Isolation Voltage |
1500 VAC input / chassis interface, 500 VAC output / chassis interface, 500 VAC input&output |
Pool Temperature Control |
Checking cooling system at determined limits (ops.) |
Efficiency |
85 / 95 % |
Working Temperature |
-20 / 50 °C |
Systematical Operation |
Special operation is applied for each process |
Input / Output Connections |
Moulded case circuit breaker/ copper bar |
PROTECTION |
|
Heat Protection |
Input / Output overtemperature protection |
Ölçüm |
Output over current protection |
TRANSFORMER |
|
Winding |
Electrolytic glass isolated copper winding |
Plate |
10.000 Gauss siliceous plate |
INDICATORS |
|
Lcd Screen |
4 x 16 - 2x16 Line |
PLC |
S71200 - S7300 |
Automation |
Modbus / Profibus / ProfiNET / RS 232 / RS 485 |
MEASUREMENTS |
|||
SAFE CODE |
G(mm) |
D (mm) |
H (mm) |
1000 - 2000 AMP |
600 |
775 |
1195 |
2000 - 4000 AMP |
600 |
875 |
1695 |
4000 - 6000 AMP |
700 |
925 |
1595 |
6000 - 8000 AMP |
900 |
1125 |
1695 |
8000 - 10000 AMP |
900 |
1225 |
1795 |
10000- 15000 AMP |
1100 |
1500 |
1820 |
